Available
Bronto S90HLA
Truck mounted
access platform
BrontoS90HLA
90m truck mounted cherry picker, supplied with an operator · See all 90m cherry pickers
90mWorking height
32mOutreach
600kgSWL
Bronto S90HLA truck mounted platform — 90m working height, 32m outreach and a 600kg safe working load.
Choose your dates
This machine is priced on application. Send your dates through and we'll come back with a quote.
Full specification
Download Specification SheetManufacturerBronto
Max working height90m
Max outreach32m
Safe working load600kg
Gross vehicle weight48t
Max cage floor height88.00m
Width - transport position2.50m
Height - transport position4.00m
Length - transport position15.50m
Standard cage width2.40m
Work cage height1.10m
Work cage depth1.05m
Extended cage width3.70m
Work cage rotation2x90°
Material lifting optionsN/A
Max ground inclination (side to side)4°
Max ground inclination (front to back)4°
Max rated wind speed12.5m/s - 28mph
Available depots
PricePrice on application

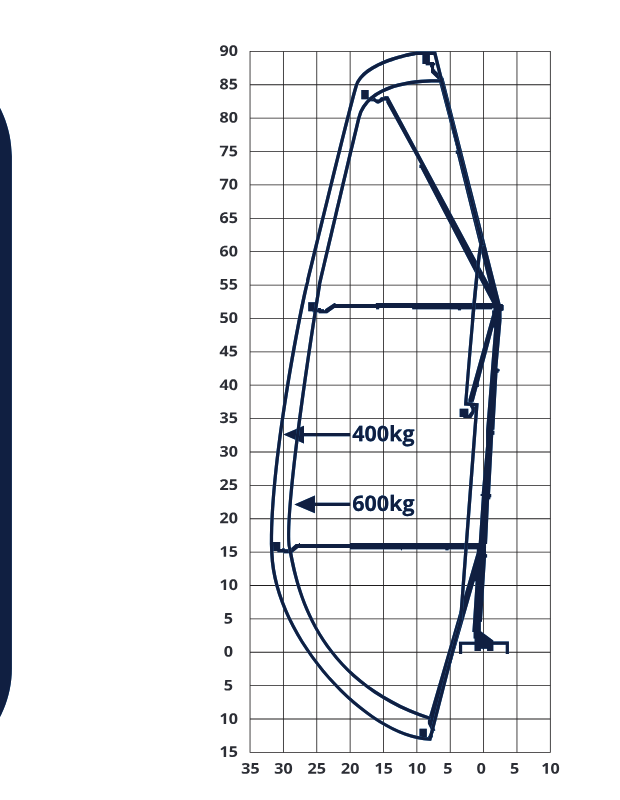

Working envelope
