GSRB220TJ

22m truck mounted cherry picker, supplied with an operator · See all 20m cherry pickers

22mWorking height

14mOutreach

250kgSWL

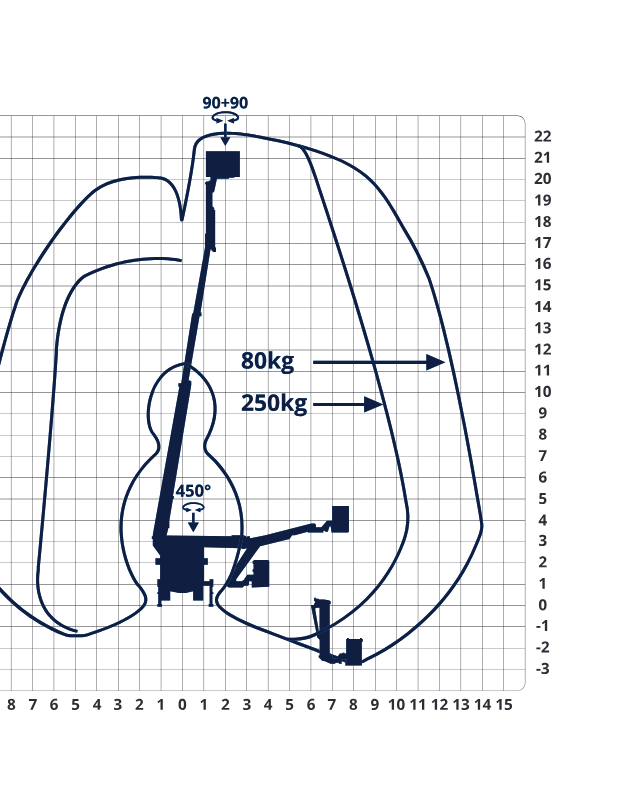

GSR B220TJ truck mounted platform — 22m working height, 14m outreach and a 250kg safe working load.

Choose your dates

Start date

Start time

End date

End time

This machine is priced on application. Send your dates through and we'll come back with a quote.

ManufacturerGSR

Max working height22m

Max outreach14m

Safe working load250kg

Gross vehicle weight3.5t

Max cage floor height20.00m

Width - transport position2.20m

Height - transport position2.98m

Length - transport position7.73m

Standard cage width1.35m

Work cage height1.10m

Work cage depth0.70m

Extended cage widthN/A

Work cage rotation2x90°

Material lifting optionsN/A

Max ground inclination (side to side)5°

Max ground inclination (front to back)5°

Max rated wind speed12.5m/s - 28mph

Available depots

PricePrice on application
