Available
Palfinger P320
Truck mounted
access platform
PalfingerP320
32m truck mounted cherry picker, supplied with an operator · See all 30m cherry pickers
32mWorking height
23.5mOutreach
600kgSWL
Palfinger P320 truck mounted platform — 32m working height, 23.5m outreach and a 600kg safe working load. Material lifting up to 350kg.
Choose your dates
This machine is priced on application. Send your dates through and we'll come back with a quote.
Full specification
Download Specification SheetManufacturerPalfinger
Max working height32m
Max outreach23.5m
Safe working load600kg
Gross vehicle weight12t
Max cage floor height30.00m
Width - transport position2.50m
Height - transport position3.53m
Length - transport position8.40m
Standard cage width3.88m
Work cage height1.10m
Work cage depth1.05m
Extended cage width3.88m
Work cage rotation2x85°
Material lifting optionsUp to 350kg
Max ground inclination (side to side)5°
Max ground inclination (front to back)5°
Max rated wind speed12.5m/s - 28mph
Available depots
PricePrice on application

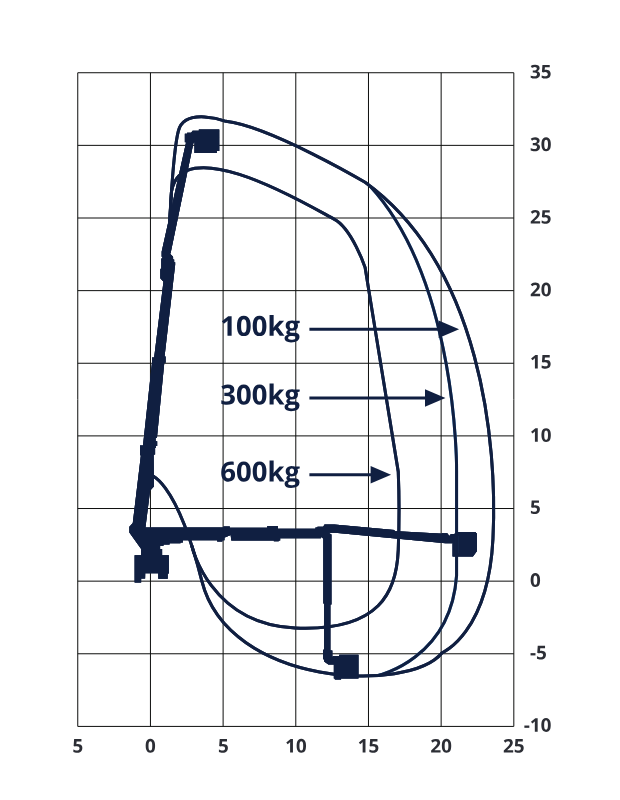

Working envelope
