Palfinger P480NX
Truck mounted
access platform
PalfingerP480NX
48m truck mounted cherry picker, supplied with an operator · See all 40m cherry pickers
48mWorking height
28mOutreach
600kgSWL
Palfinger P480NX truck mounted platform — 48m working height, 28m outreach and a 600kg safe working load. Material lifting up to 400kg.
Choose your dates
This machine is priced on application. Send your dates through and we'll come back with a quote.
Full specification
Download Specification SheetManufacturerPalfinger
Max working height48m
Max outreach28m
Safe working load600kg
Gross vehicle weight18t
Max cage floor height46.00m
Width - transport position2.50m
Height - transport position3.93m
Length - transport position9.90m
Standard cage width2.40m
Work cage height1.10m
Work cage depth1.05m
Extended cage width3.88m
Work cage rotation2x200°
Material lifting optionsHD-400kg
Max ground inclination (side to side)5°
Max ground inclination (front to back)5°
Max rated wind speed12.5m/s - 28mph
Available depots
PricePrice on application

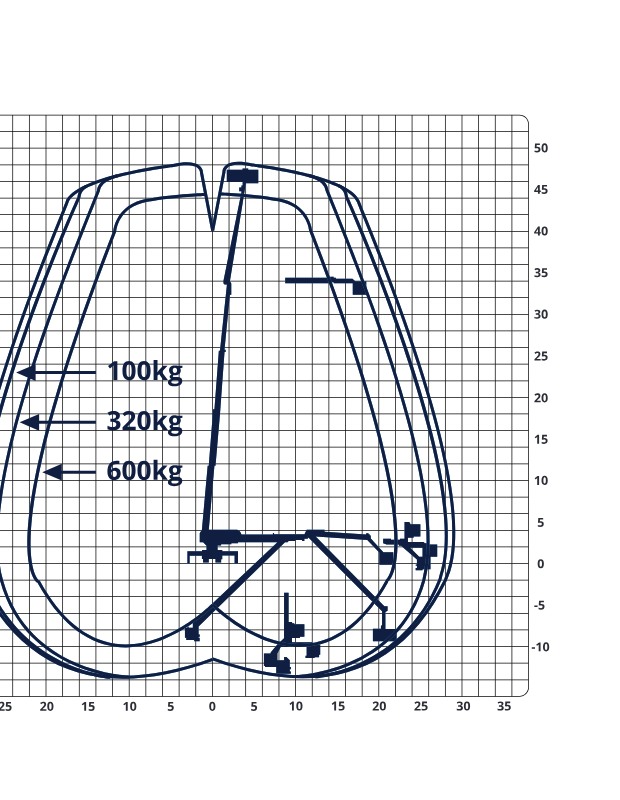

Working envelope
