Available
Palfinger P750
Truck mounted
access platform
PalfingerP750
75m truck mounted cherry picker, supplied with an operator · See all 70m cherry pickers
75mWorking height
39mOutreach
600kgSWL
Palfinger P750 truck mounted platform — 75m working height, 39m outreach and a 600kg safe working load. Material lifting up to 400kg.
Choose your dates
This machine is priced on application. Send your dates through and we'll come back with a quote.
Full specification
Download Specification SheetManufacturerPalfinger
Max working height75m
Max outreach39m
Safe working load600kg
Gross vehicle weight32.2t
Max cage floor height73.00m
Width - transport position2.54m
Height - transport position3.95m
Length - transport position14.20m
Standard cage width2.40m
Work cage height1.10m
Work cage depth1.05m
Extended cage width3.80m
Work cage rotation2x200°
Material lifting options400kg
Max ground inclination (side to side)5°
Max ground inclination (front to back)5°
Max rated wind speed12.5m/s - 28mph
Available depots
PricePrice on application

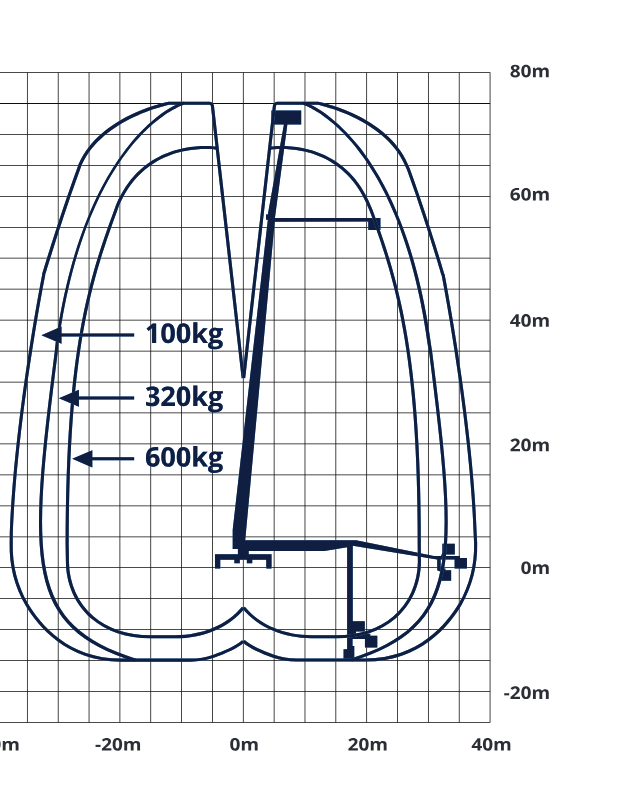

Working envelope
