Ruthmann T330
Truck mounted
access platform
RuthmannT330
33m truck mounted cherry picker, supplied with an operator · See all 30m cherry pickers
33mWorking height
21.2mOutreach
320kgSWL
Ruthmann T330 truck mounted platform — 33m working height, 21.2m outreach and a 320kg safe working load.
Choose your dates
This machine is priced on application. Send your dates through and we'll come back with a quote.
Full specification
Download Specification SheetManufacturerRuthmann
Max working height33m
Max outreach21.2m
Safe working load320kg
Gross vehicle weight7.49t
Max cage floor height31.00m
Width - transport position2.40m
Height - transport position3.56m
Length - transport position8.79m
Standard cage width1.70m
Work cage height1.10m
Work cage depth0.86m
Extended cage widthN/A
Work cage rotation2x90°
Material lifting optionsN/A
Max ground inclination (side to side)5°
Max ground inclination (front to back)5°
Max rated wind speed12.5m/s - 28mph
Available depots
PricePrice on application

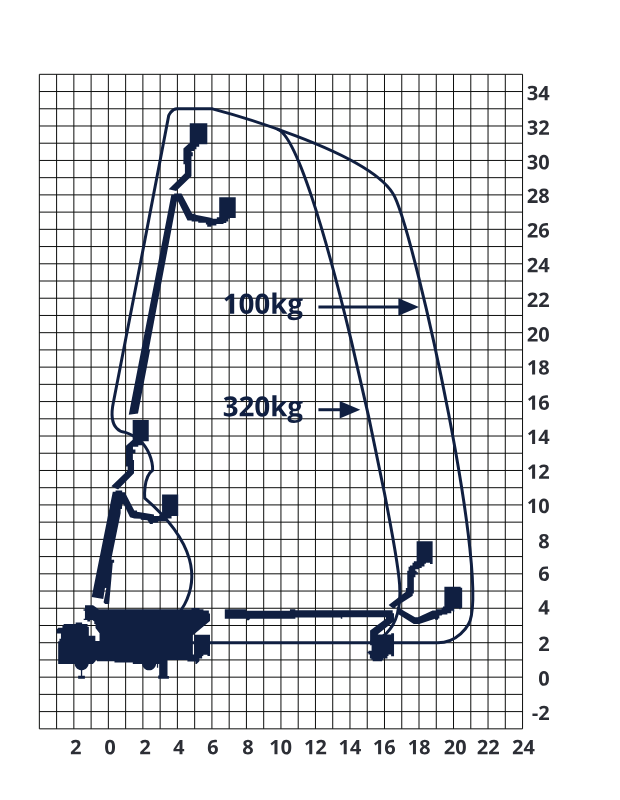

Working envelope
