Available
Ruthmann T480
Truck mounted
access platform
RuthmannT480
48m truck mounted cherry picker, supplied with an operator · See all 40m cherry pickers
48mWorking height
32mOutreach
600kgSWL
Ruthmann T480 truck mounted platform — 48m working height, 32m outreach and a 600kg safe working load. Material lifting up to 300kg.
Choose your dates
This machine is priced on application. Send your dates through and we'll come back with a quote.
Full specification
Download Specification SheetManufacturerRuthmann
Max working height48m
Max outreach32m
Safe working load600kg
Gross vehicle weight18t
Max cage floor height46.00m
Width - transport position2.55m
Height - transport position3.75m
Length - transport position10.36m
Standard cage width2.42m
Work cage height1.10m
Work cage depth0.97m
Extended cage width3.82m
Work cage rotation2x90°
Material lifting optionsHD-300kg
Max ground inclination (side to side)5°
Max ground inclination (front to back)5°
Max rated wind speed12.5m/s - 28mph
Available depots
PricePrice on application

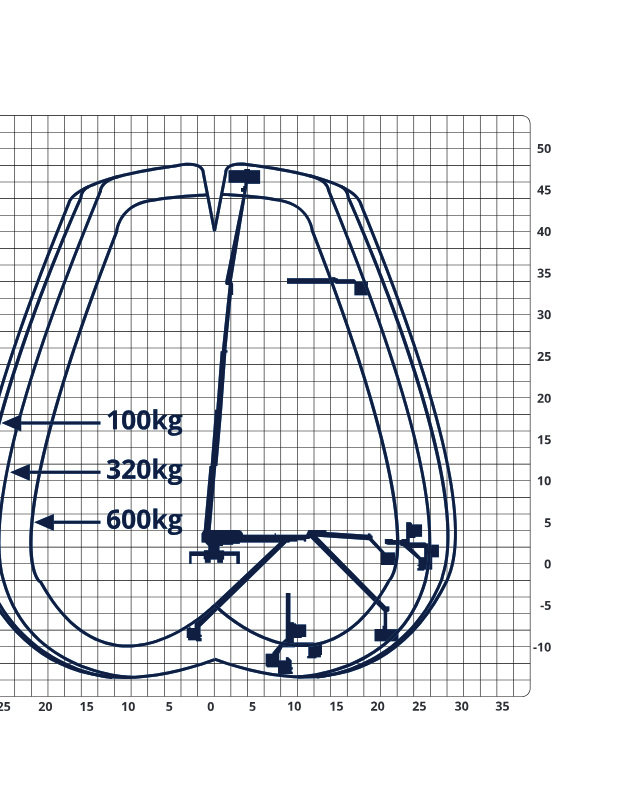

Working envelope
